JUTAI Long range Low frequency reader , can pass though any heavy metal oxide solar film and totally hands free rfid long range parking solution. 125KHz LF reading distance can reach more than 1M.


Two kinds of cards can work with GP-99 125KHz proximity reader

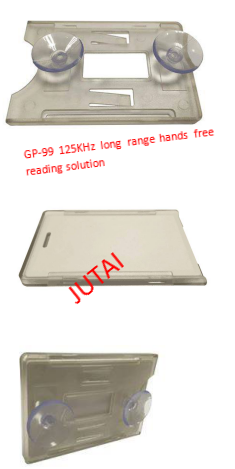

MC-5 125KHz EM card and sticker:

it can be glued in your car and don't dirty your car, totally hands free RFID long range reading solution.





Another new type dual frequency card: 125KHz &13.56MHz Mifare card,

work with JUTAI gp99 Long range proximity reader with 130cm reading range,and it can work with your any access control system, but same Card ID

Special power supply
