2.45G Long Range RFID Reader for Access Control Barrie Gate

RFID Long Range Reader Introduction

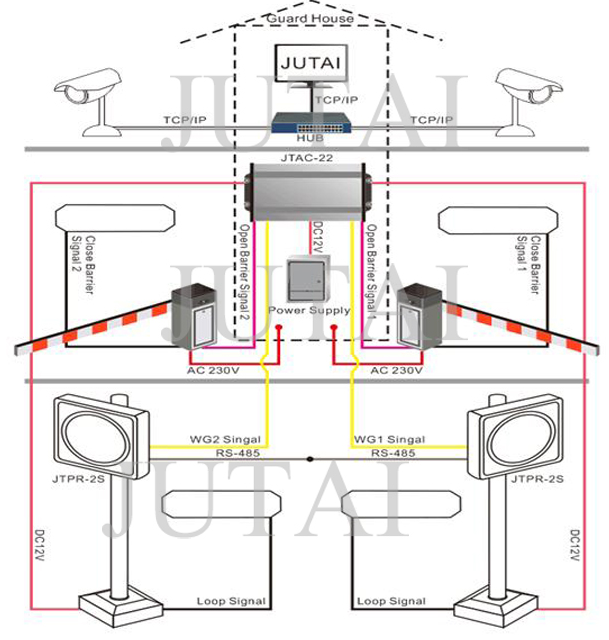

JTPR-2S RFID long range reader adopts 2.4GHZ free frequency wireless communication technologies with high sensitivity, low power consumption, no harm to human body, stable function, high capacity of resisting disturbance & high data transmission speed, can compatible with multi-type card reading device, which be widely used RFID Access control system, RFID Parking management system, personnel location system, products tracking system, army, prison, family-school product introduction.


RFID Long Range Reader Technology Parameter


Processor 32-bit ARM Cortex-M3 core microcontroller
Work Frequency 72MHZ
Reading Capacity 1000 tags/sec
Buffer Capacity1000 tags (anti-reread)
Reading Distance Maximum 120 metes
Attenuation Distance 1 to 120 meters adjustable( distance error ± 15%)
Voltage +12VDC (7-12VDC)
Current 100mA
Communication Interface Wiegand 26bit, 34bit, 36bit, 44bit, RS232, RS485 (Factory setting: 9600 8 N 1)
Work Temperature  -40 to +85 degree (industrial-grade)
Work Humidity 10% to 90%RH
Frequency Range 2400-2480MHz
Gain 18dBi
Power Angle Horizontal 55° /Vertical 45°
Polarization Way Vertical/Horizontal
VSWR 1.5
Front to Back Ratio ≥ 24dB
Input Impedance 50Ω
Thunder ProtectionDC ground
 Wind Resistance80m/s
Installation LU pole
Dimension 308*308*80mm
 CasingABS materials, waterproof

Function Introduction

1) With high-performance 32-bit ARM Cortex-M3 core microcontroller
Tag Identification Speed: 2000 tags/sec (sending by time)
Tag Reading Capacity: 1000 tags/sec
Tag Buffer Capacity: 1000 tags (anti-reread)
2) With 18dBi high-gain directional antenna
Maximum Reading Distance: 120 meters
Directional Capacity: 30: 1
3)With signal attenuator, reading distance can be adjusted from 1 to 120 meters


Contact:Mandy Chan
E-mail:sales9@jutairfid.com
Whatsapp:008615992504234
Skype:jutai.sales3
